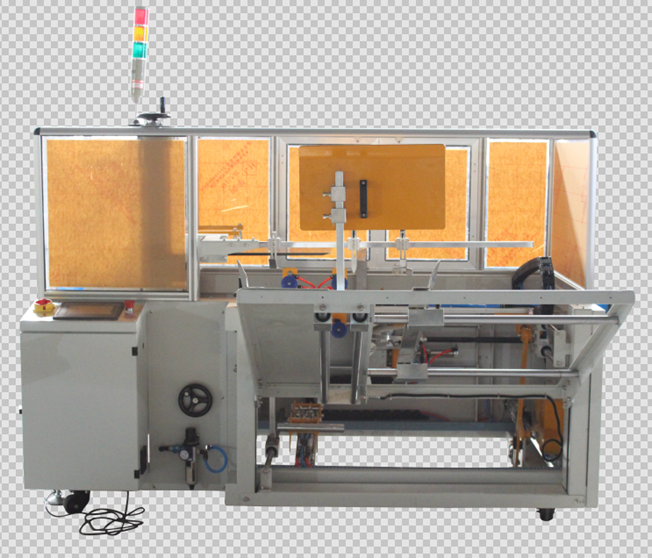

High quality 10 cases per minute vertical carton erector vertical case opener
Application scope of the packaging machine: It has a wide range of applications and can be used for packaging of various products, such as red wine, white wine, cocktails, beer, various bottled beverages, bottled water, soy sauce bottles, edible vinegar bottles, medicine bottles, cosmetics and other types of glass bottles or PET plastic bottles.
The production capacity range of the packaging machine is 8-35 boxes per minute according to different packaging specifications
The main components of the packaging machine are:
| Main configuration | Brand |
| Servo motor and controller system | Inovance |
| PLC | Beckhoff/Inovance or equivalent brand |
| Touch screen | Weilun |
| Frequency converter | Inovance |
| Proximity electronic switch | SICK or equivalent brand |
| Pneumatic components | Festo, SMC or equivalent brand |
| Voltage regulator | Festo or equivalent brand |
| Air switch | Schneider or equivalent brand |
| Motor protector | Schneider or equivalent brand |
| Contactor | Schneider or equivalent brand |
| Button | Schneider or equivalent brand |
| Intermediate relay | Schneider or equivalent brand |
| Phase loss protector | Schneider or equivalent brand |
| Terminal | Phoenix |
1.Application Scenario for vertical carton erector:
The vertical carton erector is widely used in water production line, beverage production line, canned food production line, pet food production line, beer production line, liquid seasoning production line, etc.
2.Equipment technical parameters for box erectors,carton erector,Box opener,carton opener,Box Cutting Machine,Box Cutter Machine,Box opener Machine:
1) Carton specifications: L250-450 * W200-400 * H150-350MM (maximum and minimum do not appear at the same time)
Subject to the specific carton size
2) Applicable adhesive tape: 48/60/72mm*900 yards/L OPP (choose one to use)
3) Voltage: 220V, 1∮, 50HZ.
4) Power: 200W.
5) Unpacking speed: 8-10 boxes/minute.
6) Table height: 630 (mm).
3. Equipment configuration for box erectors,carton erector,Box opener,carton opener,Box Cutting Machine,Box Cutter Machine,Box opener Machine :
Motor: Taibang
PLC: Siemens
Touch screen: Kunlun Tongtai
Cylinder: AirTac
AC contactor, intermediate relay, push button switch, air switch: Schneider: Schneider
Relay: Schneider
Suction cup: Domestic
Blade: Domestic
Solenoid valve: AirTac
Photoelectric: Banner/AB (USA)
Bearing: Domestic
4.Quotation and delivery time for box erectors,carton erector,Box opener,carton opener,Box Cutting Machine,Box Cutter Machine,Box opener Machine:
(1). Quotation validity period: 1 month;
(2). Payment method: T/T, L/C.
(3). Customers provide the product and packaging samples required for factory trial free of charge;
(4). Delivery time: 60 working days from the receipt of customer deposit and product packaging samples.
5. Quality Assurance for box erectors,carton erector,Box opener,carton opener,Box Cutting Machine,Box Cutter Machine,Box opener Machine :
(1). The company guarantees that the goods provided are brand new, unused, made of the latest design and suitable materials, and meet the quality, specifications and performance specified in the technical contract in all aspects;
(2). The company guarantees that after the production line is properly guided, installed and debugged, the equipment will reach the various technical performance indicators of the product within 15 days of the entire system being put into operation;
(3). The company guarantees that within the quality assurance period specified in the contract, it will be responsible for defects, failures and damages of the production line caused by defects in the design, process, manufacturing, installation, debugging or materials provided and the quality of the seller's equipment;
(4). The equipment quality assurance period is 12 months after the acceptance of the production line. If during the quality assurance period, it is found that the quality or specifications of the equipment do not meet the contract provisions, or it is proved that the equipment is defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to propose rectification to the seller within the product quality assurance period according to the inspection certificate issued by the statutory department;
(5). The company guarantees the mechanical properties of the equipment provided, the quality of the product and the consumption indicators of the product.
6. Equipment warranty for box erectors,carton erector,Box opener,carton opener,Box Cutting Machine,Box Cutter Machine,
Box opener Machine :
(1). After the equipment is accepted, a 12-month warranty is provided, and the control system (standard Huichuan brand) provides a 24-month warranty; during the warranty period, our company will provide users with free spare parts and timely and effective services (wearing parts are not covered by the warranty);
(2). If the equipment fails and needs to be repaired on site, our company guarantees that the maintenance personnel will rush to the customer's site within 48 hours to help the customer eliminate the fault in time (except for force majeure);
(3). After the warranty period, our company will provide users with a wide range of preferential technical support, sufficient spare parts supply and other after-sales services for life;
7. Packaging and transportation for box erectors,carton erector,Box opener,carton opener,Box Cutting Machine,Box Cutter Machine,Box opener Machine :
(1). Packaging method:
The packaging uses new and sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, suitable for land transportation, sea transportation and overall lifting.
(2). Transportation method: land transportation, sea transportation.
